Seven Reasons to Consider Using Tank Baffles in Your Sanitary Mixing System

Mix tank baffles can provide unique benefits to your sanitary mixing process

When you’re engineering a sanitary mixing system, every element counts. Each component of the mix tank, no matter how minor it may seem, can dramatically impact the efficiency, consistency, and quality of your blended final product. One such often overlooked element? The humble mixing tank baffle.

White Mountain Process, a recognized leader in industrial and sanitary mixing systems, is well aware of the importance of these components. Here, we discuss the compelling reasons to consider integrating tank baffles in your sanitary mixing system.

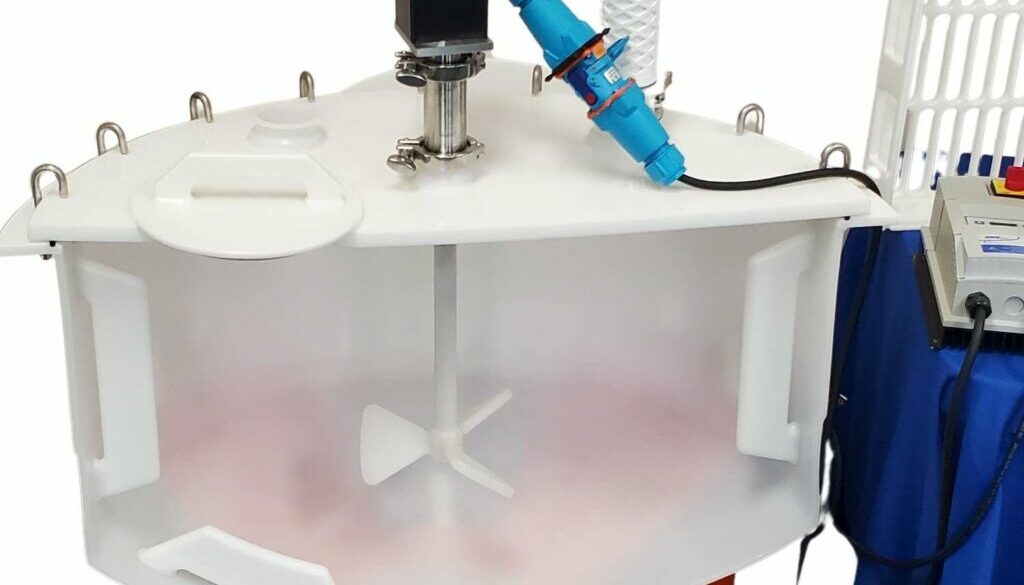

FOR CENTER MOUNT TOP ENTRY MIXERS, VERTICAL POSITION.
TANK BAFFLES CAN PROVIDE YOU WITH THE FOLLOWING:

1. Improved Mixing Efficiency

The primary function of tank baffles is to prevent the formation of a vortex. Without baffles, the liquid in the tank would merely spin around the central axis. By breaking this vortex formation, baffles ensure the liquid is forced back towards the impeller, leading to improved mixing. With baffles, you can utilize more HP from your mixer for mixing uniformity and process results.

2. Consistent Product Quality

In sanitary mixing systems, achieving a consistent blend is crucial, especially when it comes to pharmaceuticals, food products, or any solution meant for human consumption. Baffles promote a more uniform flow pattern, ensuring that all components of your mixture are consistently and thoroughly blended.

3. Controlled Heat Transfer

For processes that involve heating or cooling, baffles play a critical role. They enhance the surface turbulence at the tank wall, ensuring an effective heat transfer. Without baffles, certain areas of the tank could become ‘hot spots’ or ‘cold spots’, leading to an inconsistent product.

4. Reduced Wear and Tear

When a vortex forms in a mixing tank, it can lead to increased wear on the mixer’s impeller and seals as they work harder to maintain the desired flow. Baffles help prevent this added stress, ultimately prolonging the life of your mixing equipment.

5. Energy Efficiency

Given the improved mixing efficiency brought about by baffles, the mixer doesn’t need to operate at higher speeds or for extended periods. This can lead to energy savings in the long run, reducing the overall operating costs of the system.

6. Minimizing Swirl and Dead Zones

Without baffles, it’s common to find areas in the tank where the liquid doesn’t move as much, known as dead zones. These can be detrimental, especially if solids settle or if components don’t mix uniformly. Baffles ensure a more streamlined flow throughout the tank, minimizing these problematic areas.

7. Enhanced Solids Suspension

For processes that involve solid components, baffles can be instrumental. They promote the upward flow of the liquid, ensuring that the solid particles remain suspended and are distributed evenly throughout the mixture.

Conclusion

The addition of tank baffles to your sanitary mixing system might seem like a minor detail, but their impact is significant. By promoting efficient mixing, ensuring uniformity, and enhancing heat transfer, baffles can drastically improve the quality of your product while also reducing operational costs.

How many baffles should I use in my blend tank? The most common is four equally spaced in the tank. You can also implement three uniformly spaced baffles.

Customers also implement bottom-mounted VORTEX BREAKERS, small baffles at the tank outlet, just around the drain valve, preventing swirling when the liquid level gets lower.

For those in industries where the highest standards of cleanliness and consistency are paramount, such as the pharmaceutical, biotech, and food sectors, the integration of baffles becomes even more crucial. Trust in experts like White Mountain Process to guide you in making the right decisions for your sanitary mixing system
