How to Choose the Right Stainless Tank?

Choosing the right stainless tank begins with the process, not the catalogue photograph. Product viscosity, operating temperature, cleaning chemicals, pressure, and available floor space all shape the specification. A tank holding fruit syrup may need different mixing power from one storing pharmaceutical water. Small details matter. A steep cone can improve drainage, while a poorly placed outlet may leave several litres behind.

Paul Mueller, founder of Paul Mueller Company and a recognised name in stainless processing equipment, expressed a practical principle: “The tank must serve the process, not the other way around.” That idea remains useful when comparing capacity, steel grade, finish, and fittings. AISI 304 stainless steel suits many general applications, while 316L may offer stronger corrosion resistance around chlorides, salts, or aggressive cleaning agents. The correct choice still depends on confirmed chemical data.

Do not select a stainless tank by volume alone. Check working capacity, headspace, insulation, agitator torque, weld quality, and internal surface finish. A bright surface is not automatically a hygienic surface. Ask for material certificates, weld inspection records, and cleaning validation information where applicable. These documents support reliable purchasing decisions.

There is room for honest doubt. A lower-priced tank may appear efficient today, yet weaker insulation or difficult maintenance can raise lifetime costs. I would also avoid assuming every “316L” claim means equal performance. Supplier verification matters. The best tank is the one that protects the product, supports safe operation, and remains practical to clean, inspect, and repair.

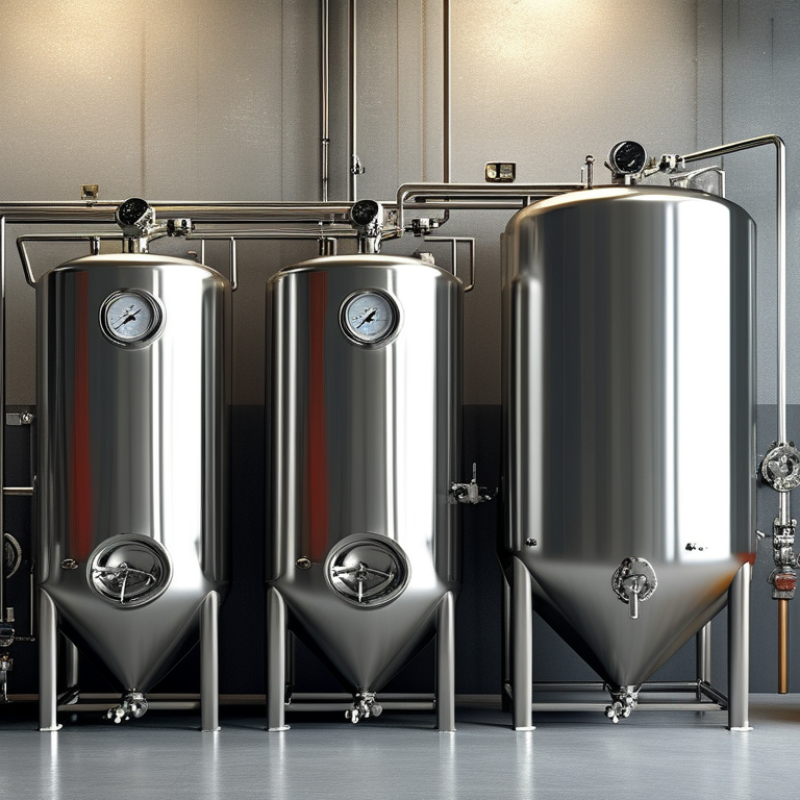

How to Choose the Right Stainless Tank?
Table of Contents [Hide]
1 Understanding Stainless Tank Types and Their Typical Applications
2 Defining Capacity, Dimensions, and Storage Requirements
3 Evaluating Stainless Steel Grades and Corrosion Resistance
4 Comparing Tank Features, Safety Standards, and Maintenance Needs
5 Selecting a Supplier, Reviewing Costs, and Making the Final Choice

Understanding Stainless Tank Types and Their Typical Applications

Choosing a stainless tank starts with the process, not the polished finish. A storage tank holds stable liquids. A mixing tank adds an impeller, baffles, and sometimes a bottom outlet. A jacketed tank controls temperature around the vessel wall. Pressure vessels need engineered shells, tested welds, and certified relief protection. They are not interchangeable. Fermentation and food processing usually require sanitary tanks. Smooth internal surfaces reduce residue traps. CIP spray coverage matters too. It may look minor. It is not.

The International Stainless Steel Forum reported 58.4 million tonnes of global crude stainless steel production in 2023. This scale reflects broad industrial use, but it does not prove every process needs stainless steel. Material choice follows chemistry, temperature, and cleaning conditions. Grade 304 suits many clean-water applications. Grade 316L adds molybdenum and usually handles chlorides better. Neither grade is universally corrosion-proof. The NACE IMPACT Study estimated global corrosion costs at 2.5 trillion dollars, or 3.4% of global GDP. A cheaper tank can become expensive after pitting, contamination, or downtime. Specify chloride concentration, pH, temperature, cleaning agents, and design life. Ask for mill certificates and weld passivation records. Surface roughness should be defined, not called merely “smooth.”

For viscous syrup, choose mixing geometry before capacity. For a hot product, check jacket area and heat-transfer duty. For compressed gas or vacuum service, request calculations under the applicable pressure code. I have seen selections fail because buyers compared volume alone. That shortcut misses drainage, access, agitation, and maintenance space. Include worst-case cleaning and empty-tank vacuum conditions. A smaller nozzle can matter more than a larger shell. This is where a process engineer’s review earns its cost.

Defining Capacity, Dimensions, and Storage Requirements

How to Choose the Right Stainless Tank?

Defining Capacity, Dimensions, and Storage Requirements

Choosing a stainless tank starts with the material you need to store. Water, syrup, oils, and cleaning solutions require different design considerations. Define the working capacity, not just the tank’s total volume. A useful allowance is 10% to 20% of extra space for expansion, mixing, or safe filling. Temperature changes can make this space essential.

Measure the available location carefully. Record ceiling height, door width, floor strength, and service clearance. A tank may fit on paper but fail during delivery or maintenance. Check the outlet position, drain slope, manway access, and connection height before approving the drawing. For taller tanks, confirm the center of gravity and support requirements. The first estimate is often wrong, especially when piping is added later.

Tips: List the product’s density, viscosity, temperature, and cleaning method. Ask whether the tank needs insulation, agitation, or a pressure-rated design. Keep at least 600 millimeters of working space where technicians must inspect equipment. Do not choose capacity by habit. A slightly smaller tank may improve turnover, while an oversized tank can leave old material sitting too long. Review the layout with an experienced fabricator and verify every measurement twice.

How to Choose the Right Stainless Tank?

Capacity should be selected together with tank dimensions and storage headspace. This chart compares nominal tank capacity with an 80% recommended working volume, leaving approximately 20% free space for expansion, mixing, and safe operation.

Nominal Capacity Recommended Working Volume Typical Internal Diameter Typical Straight-Side Height
500 L 400 L 800 mm 1,000 mm
1,000 L 800 L 1,000 mm 1,300 mm
2,000 L 1,600 L 1,300 mm 1,500 mm
5,000 L 4,000 L 1,800 mm 2,000 mm
10,000 L 8,000 L 2,300 mm 2,400 mm

Dimensions are planning references for vertical cylindrical tanks. Final selection should also consider product density, operating temperature, agitation, cleaning access, floor loading, and applicable pressure or sanitary requirements.

Evaluating Stainless Steel Grades and Corrosion Resistance

How to Choose the Right Stainless Tank?

Evaluating Stainless Steel Grades and Corrosion Resistance

Choosing a stainless tank starts with understanding the stored liquid, not the tank’s appearance. Grade 304 works well for many clean, low-chloride applications. Grade 316L offers stronger resistance to chlorides, salts, and several chemical environments. Duplex stainless steel can provide higher strength and improved resistance in demanding conditions. However, no grade is universally safe.

Temperature, concentration, cleaning chemicals, and exposure time all affect corrosion. Welded areas deserve careful attention. Poorly finished welds may become weak points, even when the steel grade is suitable. I have seen tank selections fail because the liquid was tested only at room temperature. That shortcut can be costly. Ask for corrosion data at actual operating conditions, including the expected pH and chloride level.

Tips: Request material certificates and weld-finish details. Confirm whether the tank needs passivation. Inspect internal corners, outlets, and agitator connections. If the liquid changes seasonally, test the harshest formula. Small details matter. A corrosion specialist can compare laboratory data with real service conditions. Still, laboratory results are not perfect predictions. Review inspection records and plan periodic checks for staining, pitting, or deposits. A slightly higher material cost may prevent production delays and unexpected repairs.

Comparing Tank Features, Safety Standards, and Maintenance Needs

Choosing a stainless tank starts with its duty, not its appearance. A 304 vessel may suit mild water service, while 316 stainless offers stronger resistance to chlorides and acidic cleaning agents. The World Stainless Association reported about 58.4 million tonnes of stainless steel production in 2023, but greater availability does not guarantee correct material selection. Fit matters.

Inspect the tank’s weld quality, surface finish, outlet design, and access points. For hygienic applications, smooth internal surfaces reduce residue traps, although “seamless” claims still require verification. A sloped base supports full drainage. Dead legs should be minimized. For pressure service, design calculations and inspection should follow ASME Boiler and Pressure Vessel Code Section VIII. Food-contact systems should also align with applicable sanitary construction requirements, such as 3-A standards. NSF/ANSI 61 is relevant when tanks contact drinking water or related components.

Safety depends on more than certification documents. Confirm pressure relief devices, grounding, vent sizing, and temperature limits before commissioning. The U.S. FDA Food Code 2022 emphasizes cleanable surfaces and preventing contamination during storage and handling. Maintenance records should include gasket changes, weld inspections, cleaning concentration, and rinse-water checks. I once focused too heavily on polished steel and overlooked a poorly positioned drain. That mistake increased cleaning time. Not always. Ask operators to inspect the tank physically, because drawings can hide awkward valves, unreachable seams, and maintenance risks.

Selecting a Supplier, Reviewing Costs, and Making the Final Choice

Choosing a stainless tank starts with the supplier, not the catalog photograph. Ask for weld maps, material certificates, surface-finish records, and pressure-test results. A capable supplier should explain every seam, nozzle, and support leg clearly. Request references for tanks handling similar temperature, pressure, and cleaning cycles. The International Stainless Steel Forum reported 58.4 million tonnes of global stainless steel production in 2023. That scale does not guarantee quality. Traceability still matters.

Review the full cost, not only the quoted shell price. Include insulation, polishing, fittings, transport, installation, inspection, maintenance, and downtime. A cheaper tank can become expensive when a poorly finished weld traps residue. Compare 304 and 316L stainless steel against the actual chemicals and chloride exposure. Check whether the design follows applicable requirements, such as ASME Section VIII or EN 13445. Ask how the supplier controls dimensional accuracy after welding. Small distortions can affect agitators and cleaning coverage.

I would score suppliers using technical evidence, lifecycle cost, delivery confidence, and after-sales response. Keep the scoring visible. My first estimate would probably miss cleaning validation or spare-gasket costs. That is worth challenging before approval. The final choice should include a signed specification, inspection points, acceptance criteria, and documented change control. Choose the supplier that makes risks measurable, not the one offering the fastest promise.

How to Choose the Right Stainless Tank? - Selecting a Supplier, Reviewing Costs, and Making the Final Choice

Practical comparison framework for stainless steel tank purchasing

Decision Area Evaluation Dimension Option / Benchmark Typical Data or Cost Range Recommended Review Point Decision Guidance
Tank Specification Working capacity 500–20,000 L nominal tank volume Common fabrication range for process, storage, and mixing applications Allow 10–20% headspace for liquid expansion, agitation, or foaming Select the smallest tank that meets current demand and planned growth without sacrificing usable volume
Material grade 304 stainless steel Suitable for many water-based, food, and low-corrosion services Confirm chloride level, temperature, acidity, and cleaning chemicals Use when the process environment does not require enhanced corrosion resistance
Material grade 316L stainless steel Preferred for higher chloride exposure, pharmaceutical, marine, and hygienic applications Usually costs approximately 15–35% more than comparable 304 construction Request material certificates and verify that wetted parts use the specified grade Choose 316L when corrosion risk or sanitation requirements justify the premium
Surface finish Mill finish, polished finish, or hygienic finish Typical hygienic internal roughness target: Ra ≤ 0.8 µm where specified Polishing can add approximately 5–20% to fabrication cost, depending on access and specification Define internal finish, weld treatment, passivation, and inspection method in the quotation Avoid paying for a high finish where the process does not require it
Design pressure Atmospheric, low-pressure, or pressure-rated service Atmospheric tanks are generally less complex than pressure vessels Pressure-rated construction may substantially increase engineering, testing, and certification costs State design pressure, vacuum requirement, operating temperature, and applicable code Do not use an atmospheric tank for vacuum or pressure service without a qualified design review
Fittings and accessories Manways, nozzles, agitator, load cells, jacket, valves, spray ball, insulation Accessory selection can change the final price more than tank volume alone Budget separately for controls, instrumentation, pumps, piping, installation, and commissioning Compare quotations using the same accessory and scope-of-supply list Choose the configuration that meets the process need without unnecessary options
Supplier Selection Relevant manufacturing experience Documented projects with comparable volume, material, and process requirements Review at least 2–3 recent reference projects where available Ask for anonymized drawings, inspection records, or customer references Give higher scores to suppliers with directly relevant fabrication experience
Quality documentation Material certificates, weld procedures, welder qualifications, dimensional records, and test reports Documentation completeness should be 100% against the purchase specification Confirm traceability for all wetted materials and critical components Reject quotations that leave inspection or documentation obligations unclear
Production and delivery capability Engineering lead time, fabrication lead time, inspection, packing, and transport Typical custom-tank lead time: approximately 6–16 weeks after drawing approval Request a milestone schedule with design approval, material purchase, fabrication, testing, and shipment dates Select the supplier that can meet the required date with a credible production plan
Warranty and after-sales support Warranty period, spare parts, response time, and technical support A written warranty commonly covers manufacturing defects for 12 months, subject to contract terms Clarify exclusions, response targets, replacement-part availability, and service charges Do not evaluate price without considering support after delivery
Commercial clarity Quotation validity, payment terms, taxes, freight, installation, and change-order policy A comparable quotation should clearly separate included and excluded costs Require a fixed scope and written assumptions before comparing offers Prefer transparent pricing over an apparently low but incomplete quotation
Cost Review Tank fabrication price Basic 304 stainless storage tank, 1,000–5,000 L Indicative planning range: approximately USD 3,000–15,000, depending on design and finish Compare steel grade, thickness, finish, legs, nozzles, and testing requirements Use supplier quotations for the final budget; market ranges are not firm offers
Process equipment cost Mixing, heating or cooling jacket, insulation, controls, and instrumentation Often adds 20–100% or more to the base tank price, depending on complexity Request line-item pricing for each accessory and service Prioritize accessories that reduce operating cost, cleaning time, or product loss
Total installed cost Equipment, freight, site preparation, utilities, installation, testing, and commissioning Installation and site-related costs can represent 15–40% of equipment cost Build a total-cost worksheet instead of comparing tank-only prices Choose the lowest compliant total cost, not necessarily the lowest purchase price
Lifecycle cost Cleaning, energy, maintenance, replacement parts, downtime, and expected service life Higher-grade materials and better cleanability may reduce long-term maintenance costs Estimate annual operating and maintenance costs over a 5–10 year period Select the option with the best balance of compliance, reliability, and lifecycle value
Final Choice Weighted evaluation score Technical compliance 35%; quality 20%; total cost 20%; delivery 15%; support 10% Score each supplier from 1 to 5 for every category Use the same scoring definitions and evidence requirements for every quotation Select the highest compliant score after resolving technical exceptions
Pre-award verification Approved drawing, material grade, dimensions, nozzle schedule, finish, tests, and delivery terms All critical requirements should be confirmed in writing before purchase order release Conduct a technical clarification meeting when quotations contain assumptions Do not approve a supplier until scope gaps and deviations are closed
Recommended final decision Compliant specification + complete documentation + credible delivery + transparent total cost Target: no unresolved critical deviations and a documented contingency plan Record the reasons for selection and retain rejected quotations for audit purposes Make the final choice based on verified value, risk, and fitness for purpose

Note: Cost and lead-time figures are indicative planning ranges for custom stainless steel tanks and vary by capacity, design pressure, material grade, surface finish, accessories, location, certification, freight, and installation scope. Obtain written quotations based on an identical technical specification before placing an order.
